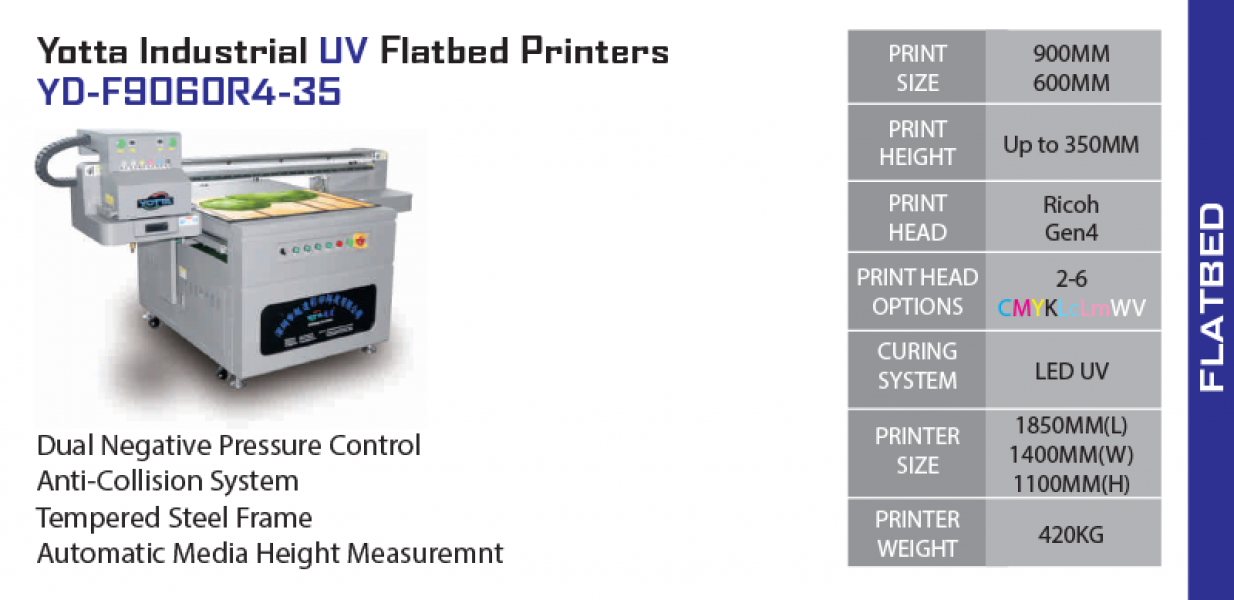

YOTTA YD-F9060R4

  • YOTTA YD-F9060R4

YOTTA YD-F9060R4 Information

Model Name               YD-F9060R4


Print Size                    900x 600mm


Print Head                  Ricoh-Gen4 grey level piezo print head


Print resolution          600x2400dpi


Print Speed                4 Pass,6.5 sq/m; 6 Pass,4.5 sq/m; 8 Pass, 3sq/m


Print Mode                  Unidirectional


Ink Colour                   CMYK + W, V(Optional)


Number of Heads      2-6pcs


Ink Type                       Eco-friendly UV curing ink (NO VOC)


Material thickness      Up to 100mm(4in)


Material Type              Rigid and Flexible Material


Material                       Glass, acrylic, wood, ceramic, metal, PVC, corrugated board, plastic etc.


Software                      PhotoPrint


Input Format                Adobe Postscript Level 3, PDF, JPEG, TIFF, EPS, Al


Power Requirement    220V/AC (±10%), 50 / 60 Hz; 6 KW



Working Environment


Separate, little sunlight, ventilated workshop. Temperature:18° C - 30°G (64°F 86°F ) Humidity: 30% 70% (Non-condensing) Ventilation equipment: Suggest Overhead exhaust fan, displacement 600 elm




Ricoh Gen4 industrial print head
    Adopting the new 2-6 pcs grey level Ricoh Gen4 internal heating industrial micro Piezo print head. Variable drop printing(7pl-35pl),ink droplet is more intensive for multi­color printing, the colors are brighter, the printer can clearly print 2pt font. The highest resolution is 600x2400 dpi.what is more, working performance is stable, so it is very suitable for long-time working, 24 hours running. If maintained in good condition, the life time of print head can reach about 5 years.
YOTTA flatbed UV printers adopt industrial print heads and high-quality components, to ensure superior colour printing and strong stability. With UV LED curing systems and ECO-friendly UV-curable printing inks, YOTTA direct-to-substrate UV printers print onto a wide range of flat substrates with waterproof, anti-UV, scratch, and fade resistent characteristics. YOTTA's digital UV LED flatbed printing machines have been widely applied in different fields of printing, such as packaging, textiles, building materials. Yotta offer a wide range of options using Print Heads from Epson, Ricoh, Xaar and Kyocera. Print Heads can be configured based on customer requirements and budget for speed and number of colours required.
