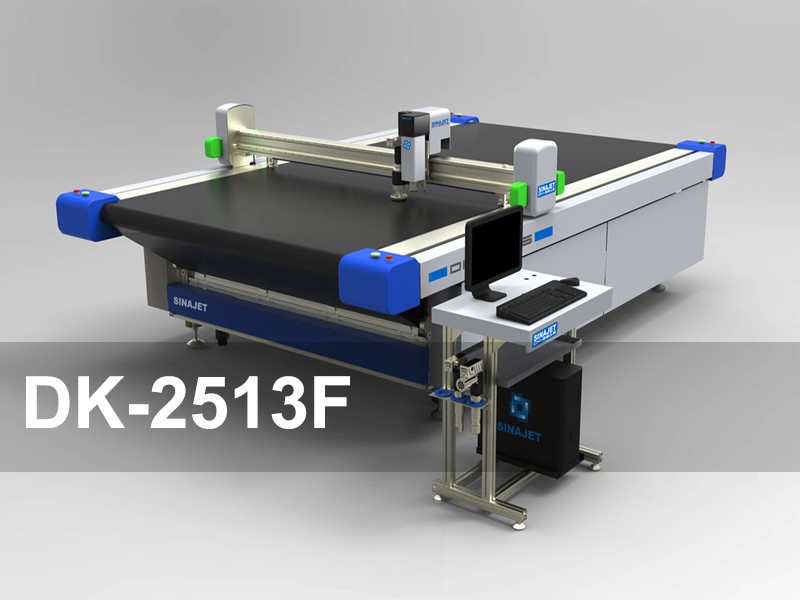

DK-2513F

  • DK-2513F

DK-2513F Information

> Modular Cutting Tool System

The modular Cutting Tools System allows a system configuration to cut popular hard & flexible materials

> Anti-Collision Device

Ant-Collision & Infra-red blocking devices provide a safe environment for the operator.

> Exclusive Absorption Technology

Integrated absorption technology reduces noise and provides low energy consumption.

> Camera Positioning System

Integrated camera position provides accurate cutting wherever the job is situated on the cutting table.

> Fixed Table

Servo Technology , Oscillating Knife, V-Cut, Standard coiled material passive feeding system.


Technical Specification

Active Cutting Area 2500 x 1300mm

Cutting Accuracy <0.1mm

Max Cutting Thickness 25mm

Max Cutting Speed 1800mm/s

Cutting Tools Circular Knife / Crease Knife Kiss Cut / V-Cut / Oscillating Knife / Notch Knife / Milling Cutter / Indentation Knife / Punching Tool

Material Fixing Vacuum Absorption

File Format DXF, HPGL, CUT

Data Transmission LAN

Working Voltage 220v/380v/50-60hz

Driving System Imported Intelligent Digital Servo Unit

Pump Power 2.2-9.0KW

Working Environment 15-30c 20%-60% Rh

Cutter Size LxWxH 3590x2330x1520mm

*Specifications above are subject to change without notice
