> Automatic Height Measurement System
Media height can be set automatically via software control.
> Anti-Collision Device
The Print Carriage is fitted with an Anti-Collision device to protect the Print Head & Operator in the case of obstruction.
> Negative Pressure System
The negative pressure system on the F3216R5 provides a smooth flow of ink to the Print Head System. Print Quality is maintained throughout the Print without marking and the Printer is easier to maintain consistent Print results. The system has independent control for CMYK & White Ink for improved White Ink Quality and reduced Ink wastage.
> Ricoh Gen5 Industrial Print Head
With available configurations from 3-10 Print Heads the Ricoh Gen5 provides value combined with versatility if you require White & Varnish Options. The Industrial design of the Print Head provides an extended lifetime using UV Inks.
> Available Options
The F3216R5 can be supplied with up to 10 Print Heads for additional performance. Varnish Print options provide a unique Print effect to add value to Printed products.
The F3216R5 can also be specified with a reverse vacuum bed for loading heavy media and Pin registration system for accurate double sided board printing.

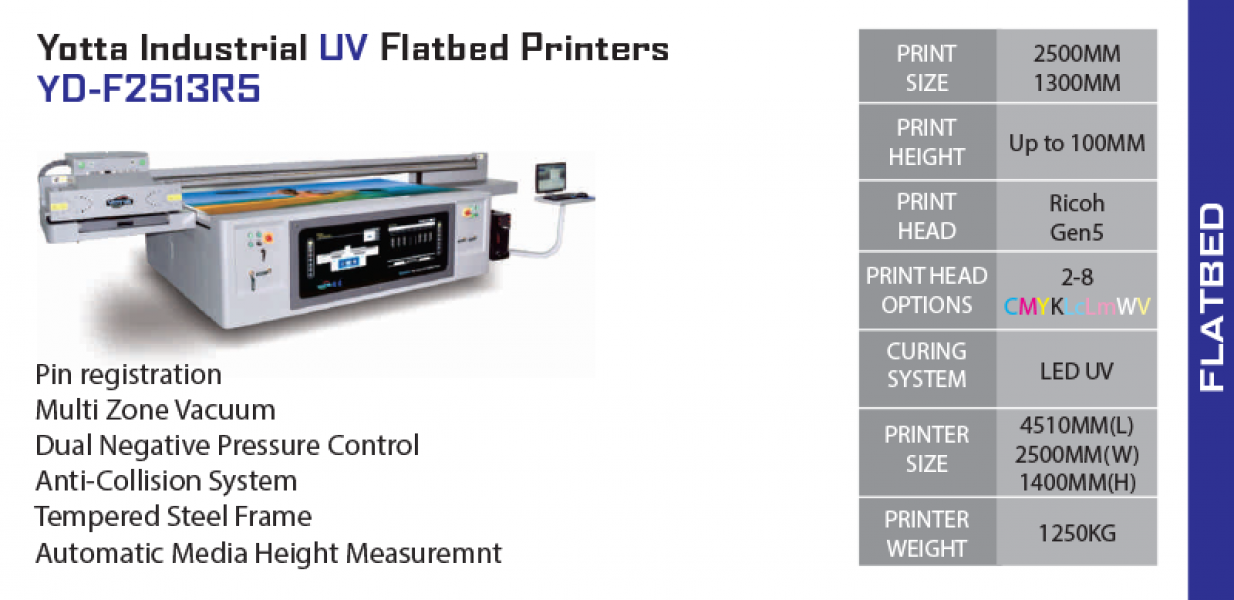

Print Head Ricoh Gen 5 - Number of Print Heads 3-10
CMYK/Wx2 Performance is affected by Print Head Configuration
Express Mode 43sqm/h Production 33sqm/h Quality 23 sqm/h
Resolution & Software
Resolution 600x2400dpi (Max)
Software Sai Photprint
Print Width 2500x1300mm
Media Thickness 100mm (Max)
Feeding & Take-Up System Rigid media - Vacuum bed
Ink Type UV Curable
Ink Supply System 1.5L - Bulk System with automatic supply
Ink Colours CMYK (Lc Lm White & Varnish Optional)
Ink Curing System LED UV Curing System.
Dimensions & Weight
Machine LxWxH 4510x2500x1400mm
Connectivity High Speed USB
Power Single Phase, 220VAC±10%, 50/60Hz; 2.4KW (Machine)
Environment Temp. 18~30°C; RH 40~60%
Positioned away from direct Sunlight - Recommended
Warranty 1 Year Warranty Standard
YOTTA flatbed UV printers adopt industrial print heads and high-quality components, to ensure superior colour printing and strong stability. With UV LED curing systems and ECO-friendly UV-curable printing inks, YOTTA direct-to-substrate UV printers print onto a wide range of flat substrates with waterproof, anti-UV, scratch, and fade resistent characteristics. YOTTA's digital UV LED flatbed printing machines have been widely applied in different fields of printing, such as packaging, textiles, building materials. Yotta offer a wide range of options using Print Heads from Epson, Ricoh, Xaar and Kyocera. Print Heads can be configured based on customer requirements and budget for speed and number of colours required.
